Flight Sim Cockpit — Digital Files

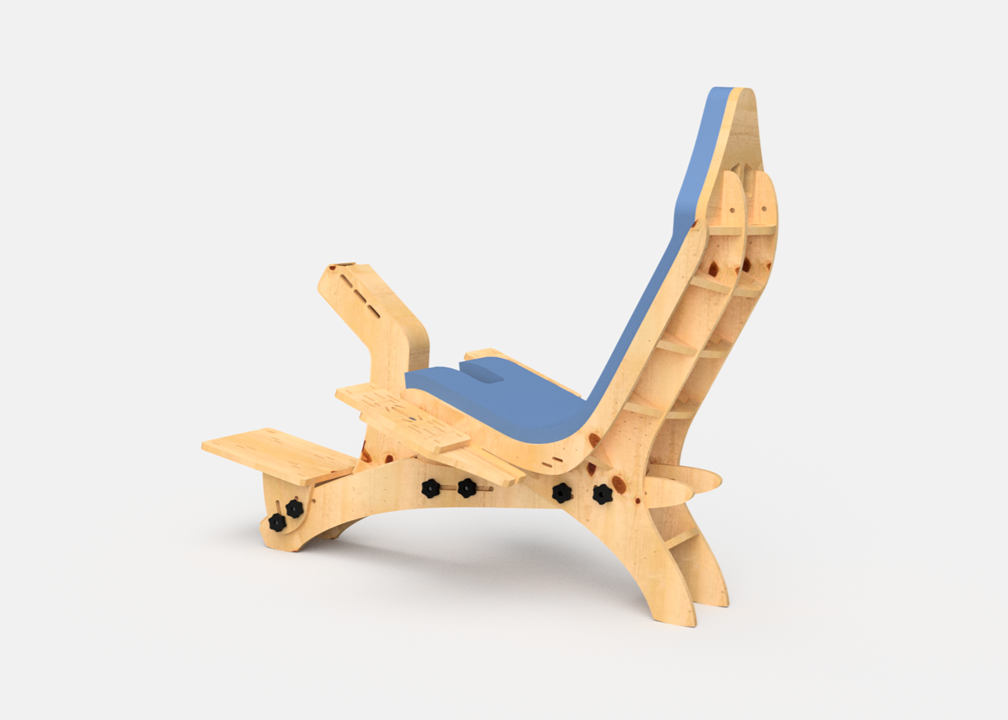

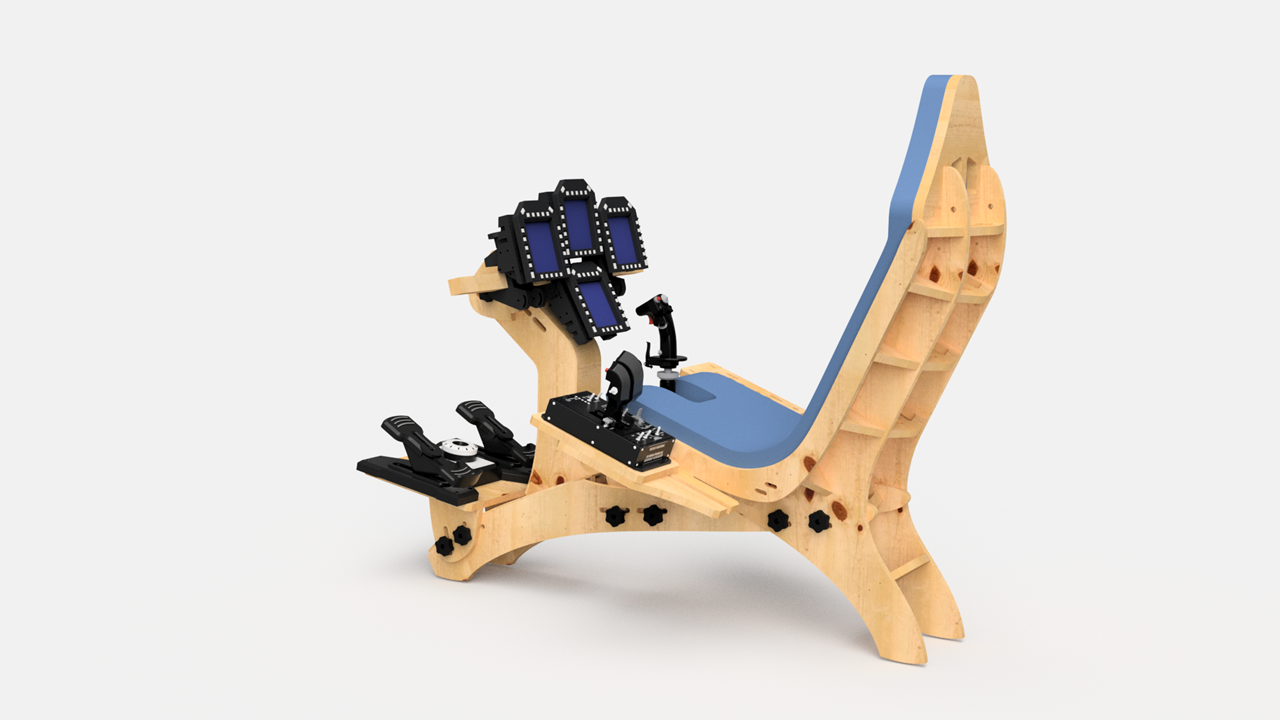

The Starter kit is perfect for anyone beginning their home flight simulation journey, it includes all the essential plans to build the seat, chassis, footrest, and peripheral adapter panels. Designed with modularity in mind, it’s a great foundation for your sim cockpit.

📦 Kit Content

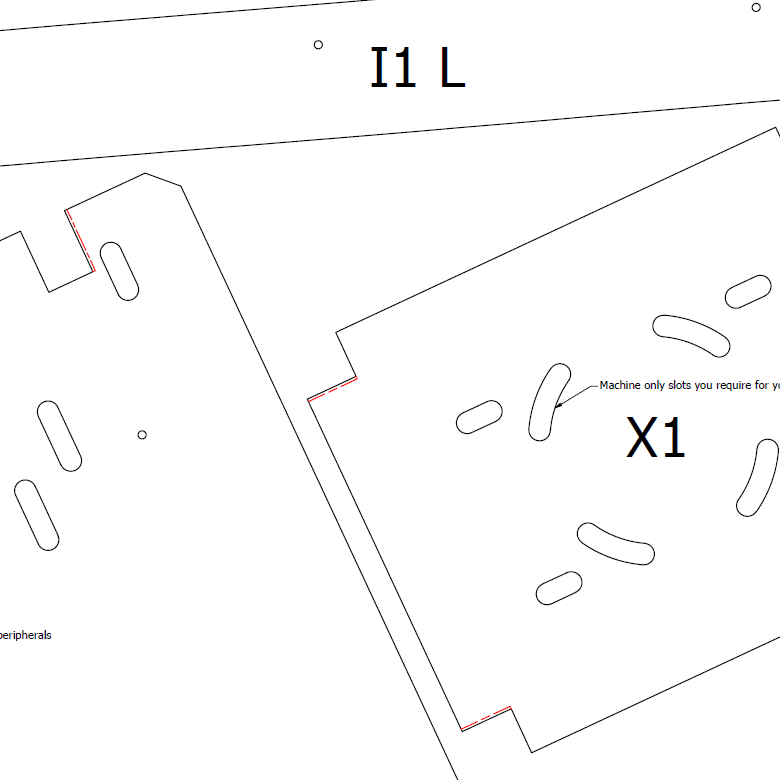

• Full-scale (1:1) printable PDF cutting plans for seat, chassis, footrest, and peripheral panels
• Illustrated step-by-step assembly guide

🧰 Materials Required

The plans are designed to be used with standard EU and US plywood formats.

EU Wood Supply

• x1 standard 1220x2440 mm sheet – 18 mm thick
• x1 standard 1220x2440 mm sheet – 3 mm thick

US Wood Supply

• x1 standard 4x8 ft sheet – ¾ inch thick
• x1 standard 4x8 ft sheet – ⅛ inch thick

Miscellaneous Parts

• x1 high density foam 136 cm long – 45 cm wide – 5 cm thick
• x16 M12 hex bolts – 55 mm long
• x2 piano hinges – 150 mm long, 1 mm thick
• x2 M12 mounting brackets (or equivalent)
• x16 M12 clamping knobs
• Wood screws (other types/sizes may be used)
• Ø3.5 mm × 50 mm
• Ø3.5 mm × 15 mm



🔧 Tools Required

• Jigsaw
• Drill/Driver
• Router + router bits
• Standard woodworking tools (screwdriver, clamps, measuring tape, etc.)

👀 Want a closer look ?

☝️ Click the Preview tab to view sample pages from the assembly guide.

Unsure how to use the PDF plans?

👉 Head over to the FAQ page.
