Pre-Cut Kit — Early Adopter Edition

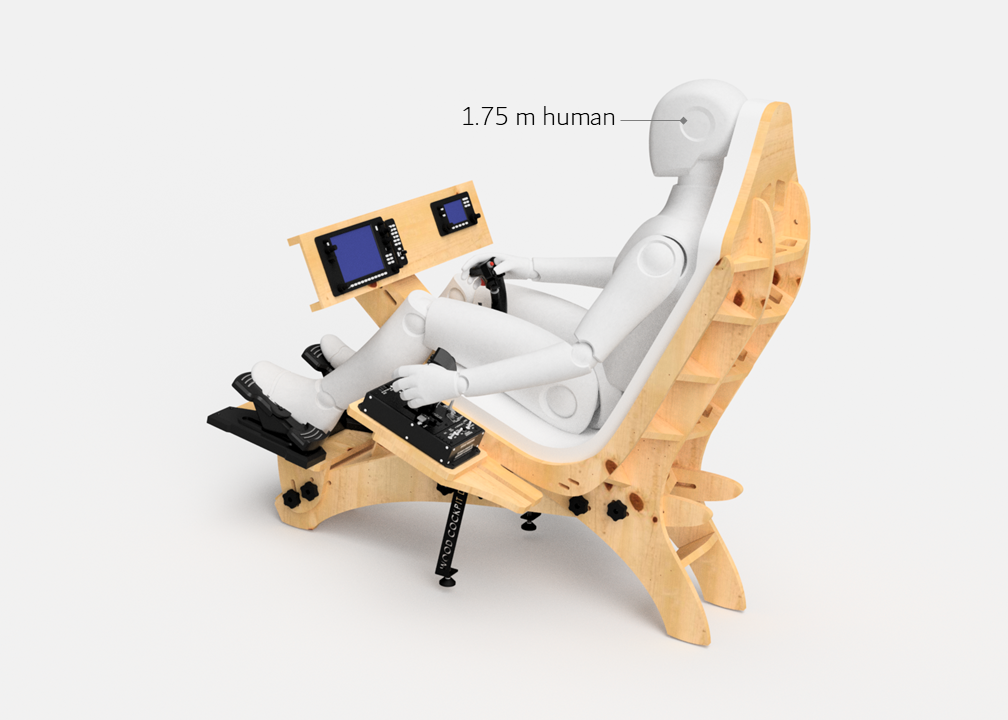

Cockpit Specifications

• Maximum load capacity: 140 kg
• Dimensions:
• Length: 150 cm (fully extended)
• Width: 90 cm (with side panels deployed)
• Height: 125 cm
• Approx. weight: 20 kg (cockpit structure only, peripherals not included)
• Seat inclination range: 15°–25° (default: 20°)
• Central stand: Fully removable via quick-release coupling
• Material: 18 mm Okoumé plywood (Quality II/III – B/BB, 9 plies, Class 3 bonding)

📦 Kit Content

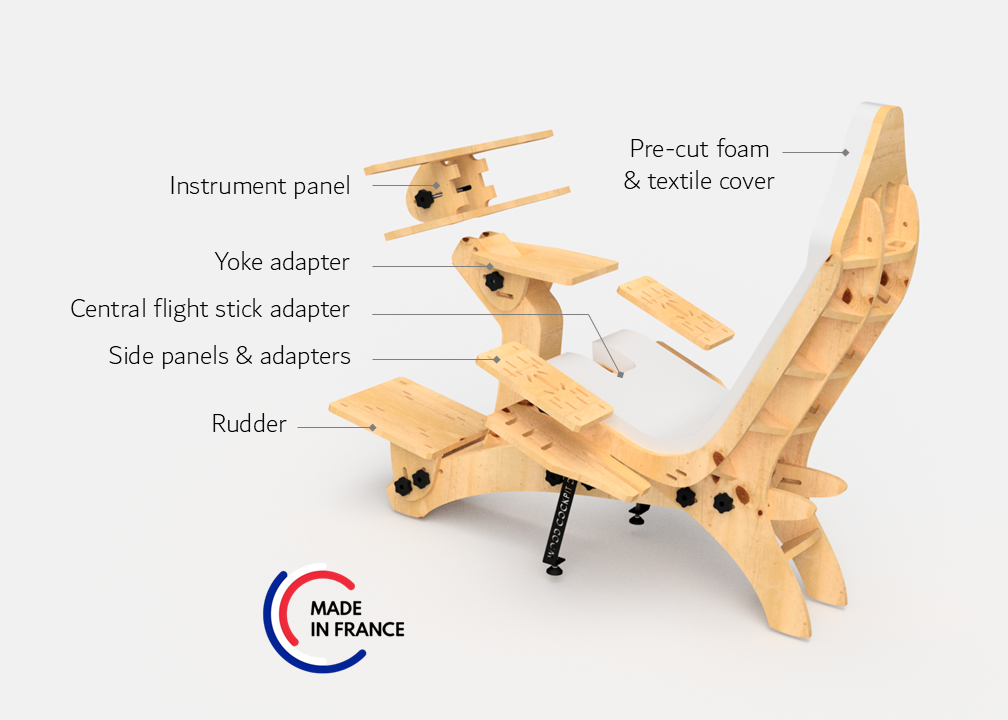

• Precision CNC cut cockpit chassis, including the rudder support structure, central flight stick adapter, side panels & peripheral adapters, yoke adapter and instrument panel frame
• High-density pre-cut foam (density: 38 kg/m³, thickness: 5 cm)
• Premium textile seat cover
• Download the materials & colors selection catalog 👉 here. After placing your order, please send your selection via the contact form.
• Personalized seat embroidery (Signature Edition)
• After placing your order, please send your logo file (PDF format 300dpi) via the contact form.
• Complete set of hardware:
• Heavy-duty M12 structural bolts and locking nuts
• Stainless steel rods
• Laser-cut, powder coated steel parts
• Guiding hinges
• Adjustable leveling feet
• Wood screws

🔧 Tools Required

• Electric screwdriver
• Wood glue (optional but recommended)

💡 Not sure if your peripherals will fit?

No worries! Check out the dedicated compatibility article on the blog here. If you’re still unsure, simply reach out via the contact form with your hardware model. I’ll be happy to check compatibility.

🚚 Production & Delivery Process

Estimated production time: 3–4 weeks

Estimated delivery time: 1–2 weeks, depending on your location

Shipping costs are calculated automatically at checkout. If your country is not listed, please contact me to confirm availability.

For non-EU customers

International shipments are handled under DAP (Delivered At Place) terms. Local import duties or taxes may be requested upon delivery depending on your country. Full details are available in the General Terms & Condition of Sale.
